High production Core Veneer Dryer
1.Customizable (customized one-stop service)
2.Professional factory production
3.Stable equipment and low failure rate
4.Energy saving and power saving, using axial flow fans, the power of the whole machine is reduced by 38%
5.Users can visit the case site nearby
6.The roller uses a φ89mm special shaft tube, which is corrosion-resistant and rust-proof
High production demands require equipment that can keep pace without sacrificing product quality. Our High-Capacity Core Veneer Dryer is built for exactly that — large volumes, consistent performance, and premium drying results. With a specially engineered roller conveyor system and multi-zone temperature control, it dries veneer sheets of various species and thicknesses with incredible accuracy. Thanks to advanced heat recycling and thermal insulation, the machine significantly cuts down on energy consumption while maintaining a high drying speed. Whether your goal is expanding production capacity or optimizing current workflows, this dryer gives your operations a powerful competitive edge.
Advantages of Core Veneer Dryer
1. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.
2. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.
3. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.
4. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.
5. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.
6. We have a professional R&D team which can design different models according to customer’s special requirement.
7. The perfect after-sale service team can supply 24 hours online service.
Product Parameters of Core Veneer Dryer
Wood species | Veneer Drying capacity (m³/h) | Veneer water moisture | Veneer thickness and size | |||
1 deck veneer dryer | ||||||
Eucalyptus | 0.5-2 | 1-3.3 | 2-9.0 | 15-17 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Birch | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Rubberwood | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 60%) to about 0% | 0.8-8mm |
Poplar | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 50%) to about 0-10% | 0.8-8mm |
Beech | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Pine | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Other | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
shine veneer dryer can dry various types of wood. If you want to know more detailed information, please feel free to contact us! | ||||||

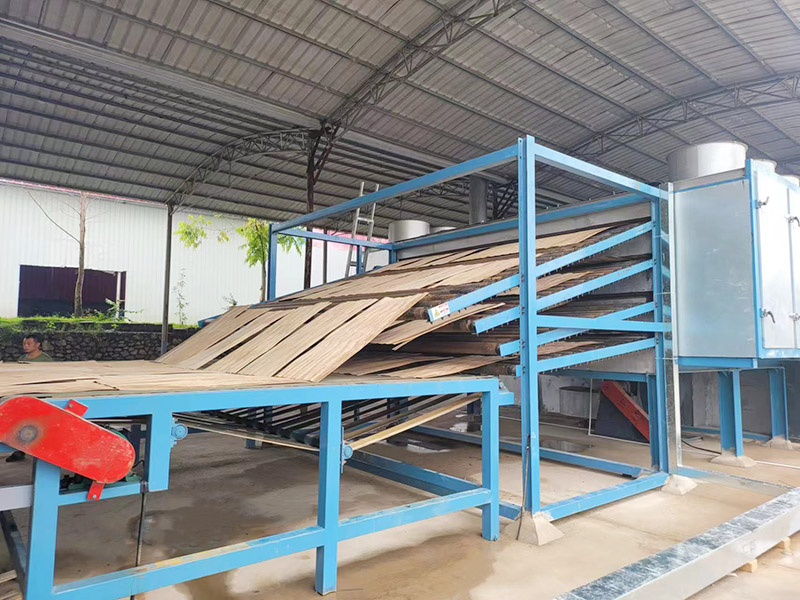

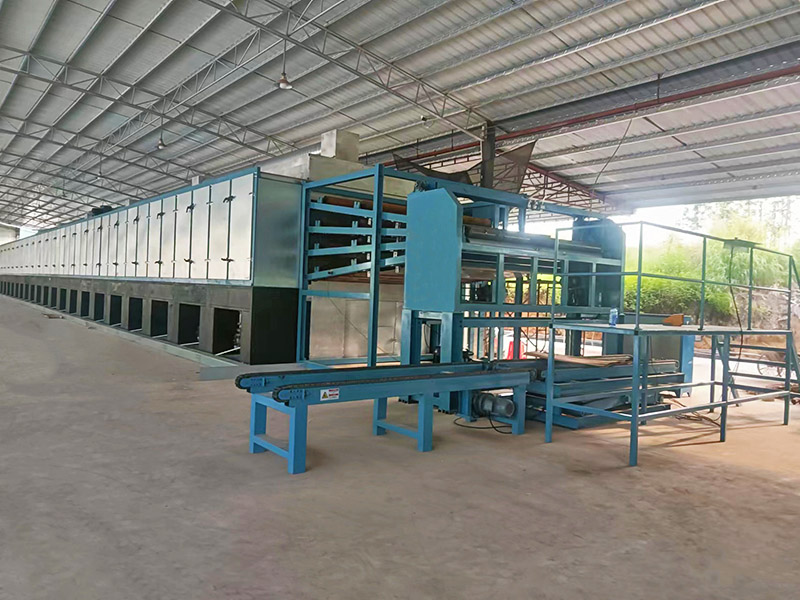

Customer Case

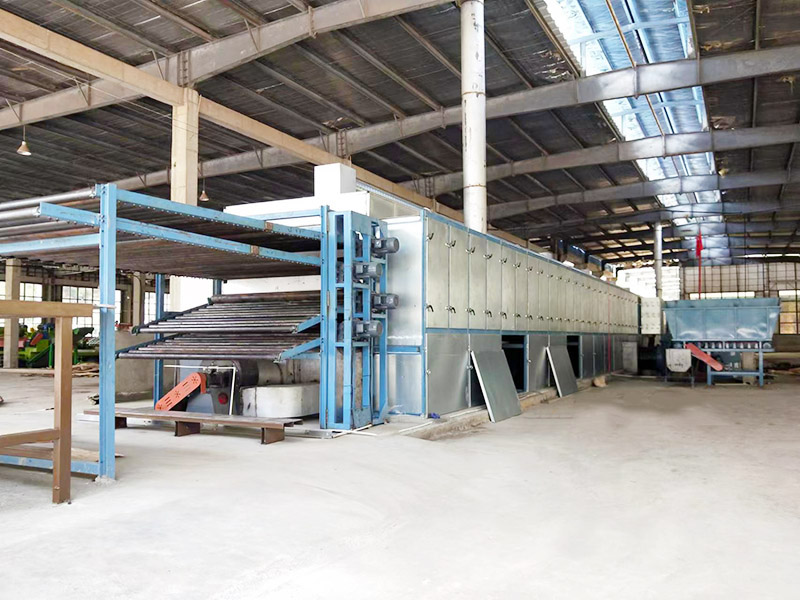

The Factory
