Veneer Machinery

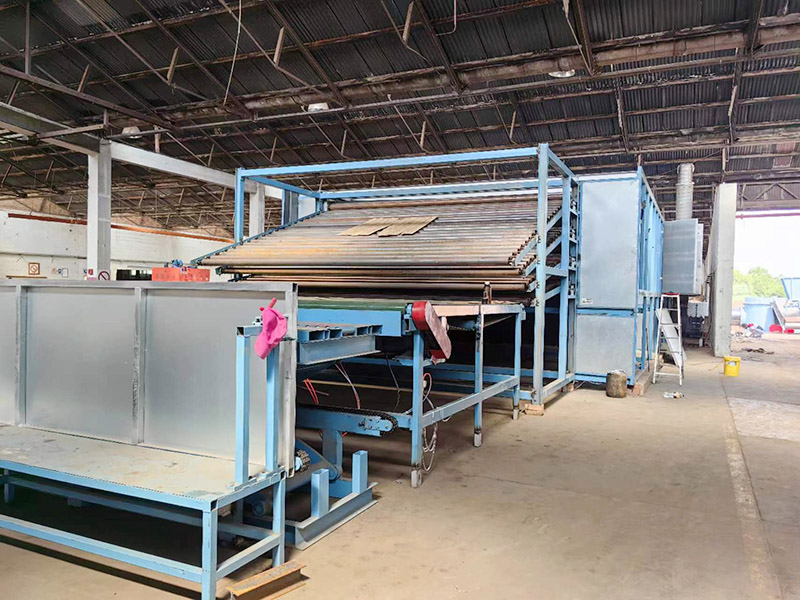

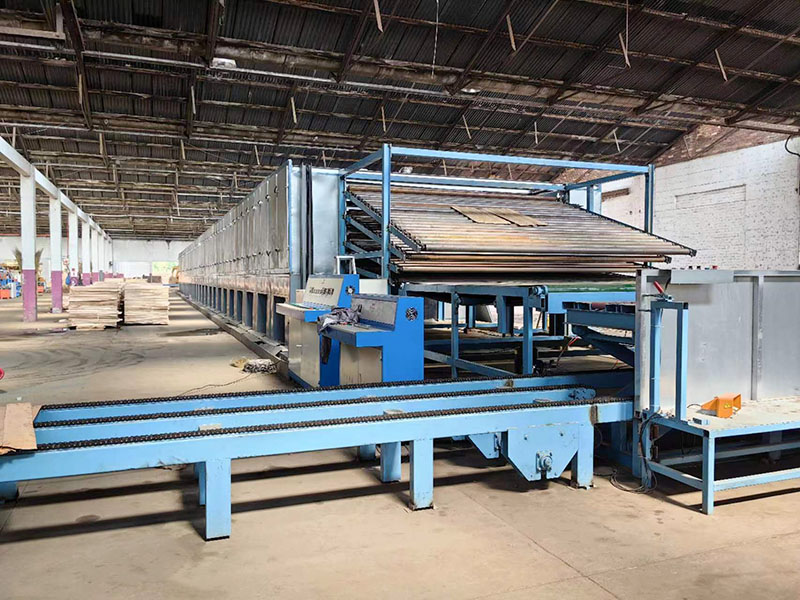

Our Veneer Dryer Machine (Roller Type) sets the industry standard with unmatched productivity, energy efficiency, and cost-effectiveness, delivering the perfect drying effect for your wood processing needs. Designed to handle 3m working width and 0.8-8mm veneer thickness, this Wood Veneer Dryer features a 38m heating area with a daily drying capacity of 120m³, ensuring uniform moisture content (0-15%) and flawless surface quality—no buckling, end waviness, or splits, making it ideal for gluing and further processing.
The 4-deck veneer machinery features a high degree with an automatic feeder and veneer collection system. In addition, we have one automatic fuel feeder for the biomass burner to save manpower. Unlike steam veneer dryers or thermal oil veneer dryers, biomass burners can burn all kinds of waste wood, waste veneer, tree barks, straw chips, and so on. In this way, the veneer drying cost is significantly reduced as no need for coal, electricity, gas, or oil as fuel. Furthermore, it also solves the problem of waste accumulation in wood processing plants by burning waste wood. Typically, the main body of the veneer machinery is divided into the veneer feeding section, the veneer heating section, the veneer cooling section, and the veneer out feeding section.
Shine veneer machinery is smooth, and the moisture content is uniform. The high-temperature rollers have direct contact with the wet veneer for heat transfer, the heat efficiency is high, the heat loss is small, and the heat loss is reduced. The selling price for veneer dried by roller veneer dryer is higher than natural air drying. The veneer machinery adopts frequency conversion to adjust feed speed according to your veneer thickness and moisture content to achieve an ideal drying effect.
Product Parameter of Veneer Machinery
Model No | GTH30-38 |
Working Width | 3.0m |
Deck | 4 |
Roller material | Q235B, φ102 special shaft tube |
Heating area length | 34m |
Cooling area length | 4m |
Veneer thickness and size | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is an automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | 120 |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（34pc） |
Traction motor | Power: 5.5KW，frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 15KW（2pc） |
10-ton biomass burner | Power: 16.5KW |
Total power | 161.5KW |
Actual electricity consumption | About 114kwh per hour |
Overall Dimension(L*W*H) | 49m×11m×3.5m |
Exhibition and Customer Visiting
During the exhibition, we adjust the drying parameters on site according to the customer's wood species (e.g., European birch / Southeast Asian rubberwood). Customized anti-freeze/anti-rust configuration for high cold/high humidity areas (material samples provided on-site for comparison)
Certification
As the industry technology benchmark, Shine Machinery's veneer dryer series products have passed a number of international authoritative certifications, providing strong support for customers' safe production and global market access.

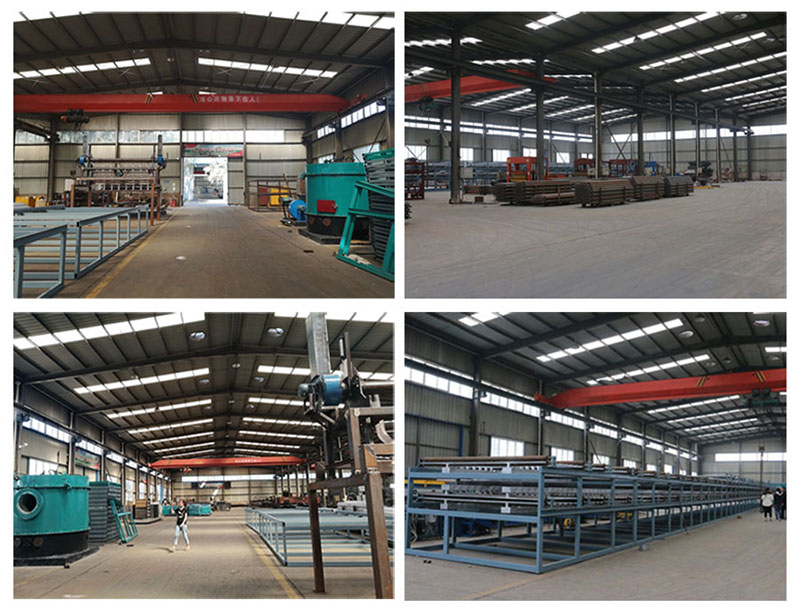

The Factory
✅ Selected raw materials: high-quality stainless steel and international brand accessories (Siemens motor, ABB control system)
✅ Process standards: ISO 9001 quality management system certification, 100% testing of key processes
✅ Performance testing: 72 hours of continuous trial of each machine, water content uniformity of ≥ 98% of a compliance rate
Our Services
As a leading veneer dryer manufacturer, ShengHuai Machinery provides customers with professional services throughout the entire life cycle of the equipment to ensure that your productivity and return on investment are maximized:
Customized Design Service
Wood Characteristics Analysis (Moisture Content Detection/Species Database Support)
Preferred Heat Source (Biomass/Gas/Steam/Electric Heating/Heat Pumps)
Non-standard size customization (up to 42m continuous drying line)
Turnkey project implementation
✅ Foundation pre-burial guidance drawings
✅ Equipment installation and positioning service (laser calibration)
✅ 72-hour load test + moisture content uniformity certification
Intelligent operation and maintenance support
Remote diagnostic system (4G IOT module real-time monitoring)
Annual Preventive Maintenance Program
-Quick supply of original spare parts (48-hour global emergency response)
