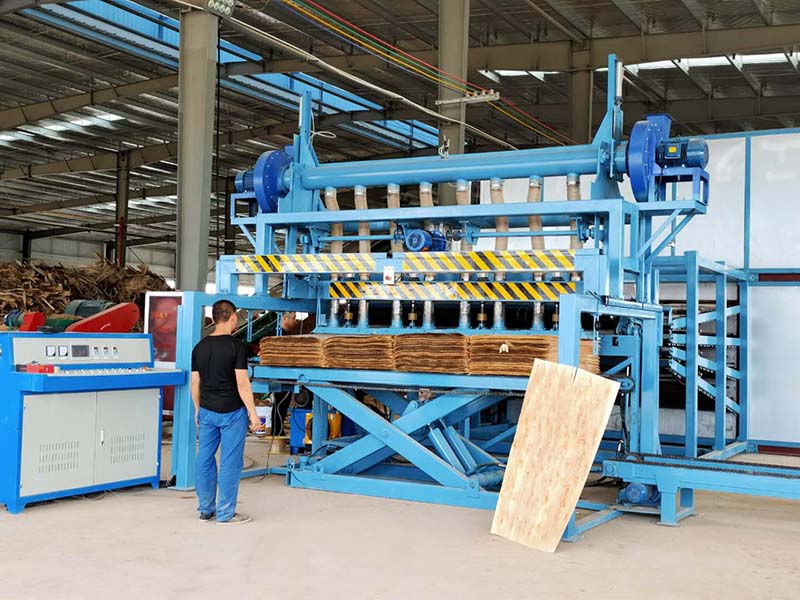

Core Veneer Dryer
The veneer dryers produced by Shine focus on environmental protection and energy saving. The use of advanced thermal energy cycle technology minimizes energy consumption and reduces production costs. Well-designed insulation and sealing systems ensure that heat energy is not wasted, making your production more environmentally friendly and economical.
Core Veneer Dryer
shine core veneer dryer are equipped with state-of-the-art humidity and temperature control systems. Whether you are working with hardwoods, softwoods or specialty woods, it ensures that each piece of wood dries at optimal moisture levels, preventing cracking, warping or deformation. You can trust it to achieve the best quality for your wood. Whether you are a small-scale workshop or a large-scale production plant, we have a veneer dryer to suit your needs. From capacity to specifications, we offer a variety of options to meet the requirements of different projects.
Purchasing our veneer dryers is not only an investment, it is a strategic decision that will bring long-term returns to your business. Efficient wood drying will increase your production capacity, reduce scrap rates, reduce maintenance costs, and create considerable profits for you. We provide you with more than just a machine, but also a reliable partner to help you achieve greater success.
Product Parameters of Core Veneer Dryer
Model No | GTH30-36 |
Working Width | 3.0m |
Deck | 4 |
Roller material | Q235B, φ102 special shaft tube |
Heating area length | 32m |
Cooling area length | 4m |
Veneer thickness and size | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |

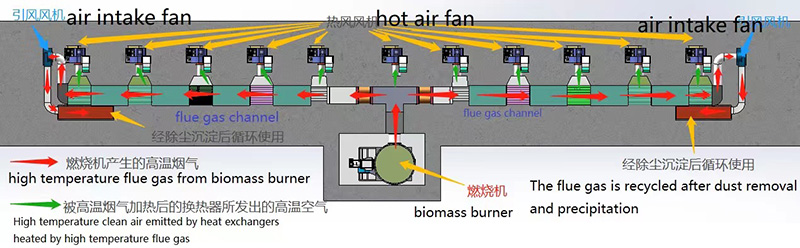

Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | 110 |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（32pc） |
Traction motor | Power: 5.5KW，frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 15KW（2pc） |
10 ton biomass burner | Power: 16.5KW |
Total power | 212.5KW |
Actual electricity consumption | About 145kwh per hour |
Overall Dimension(L*W*H) | 47m×11m×3.5m |

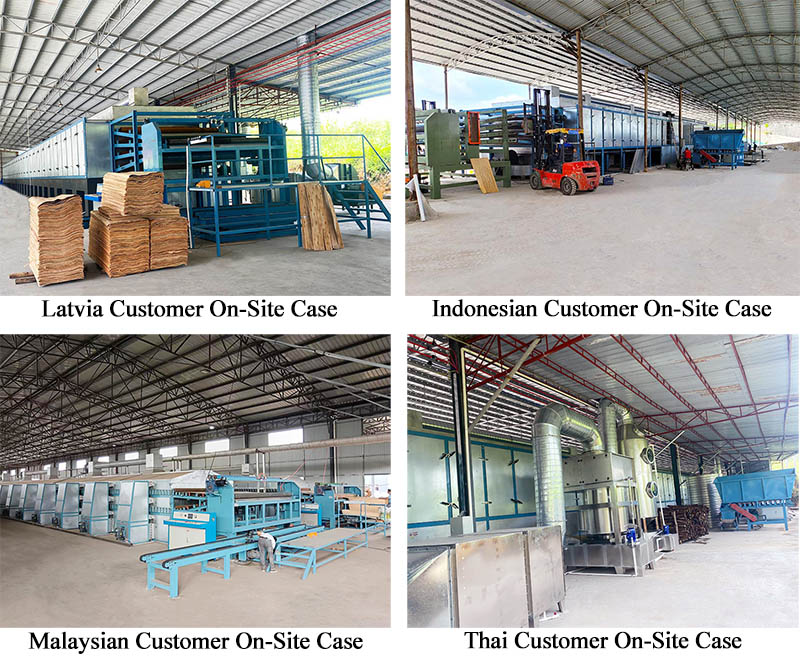

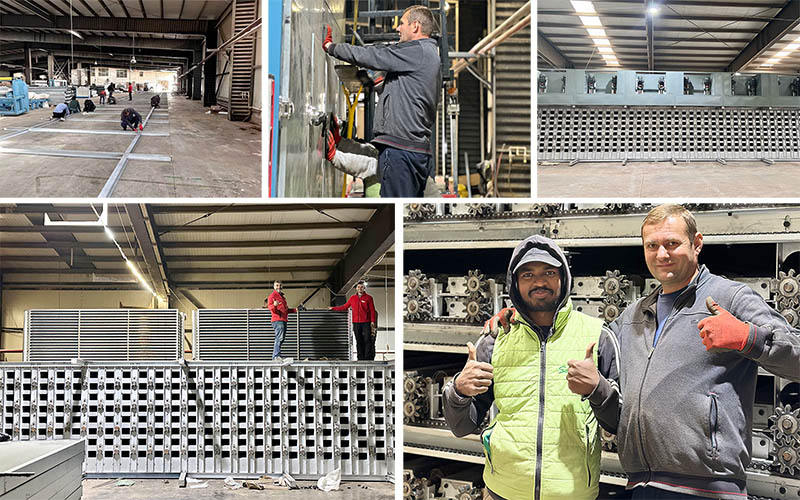

The installation

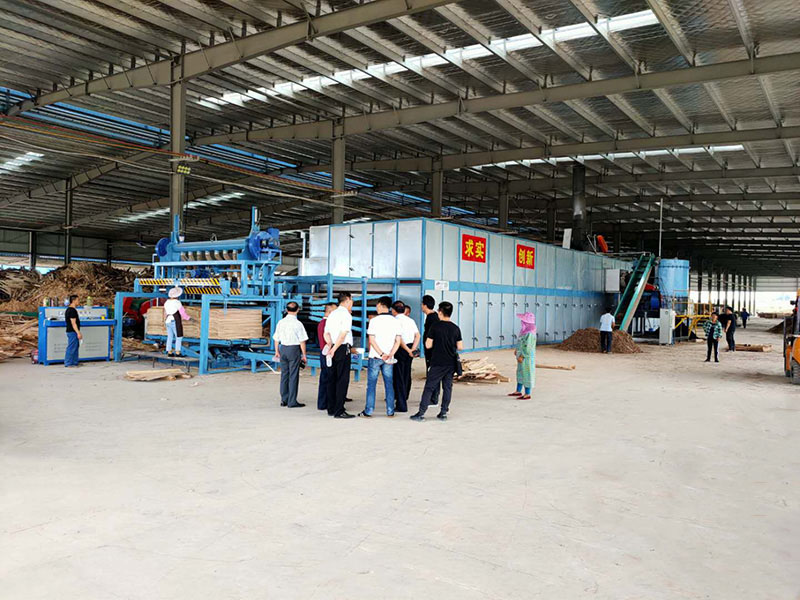

The Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all core veneer dryer
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging（Technical phone：+8615806625431）Door to door service is possible.
