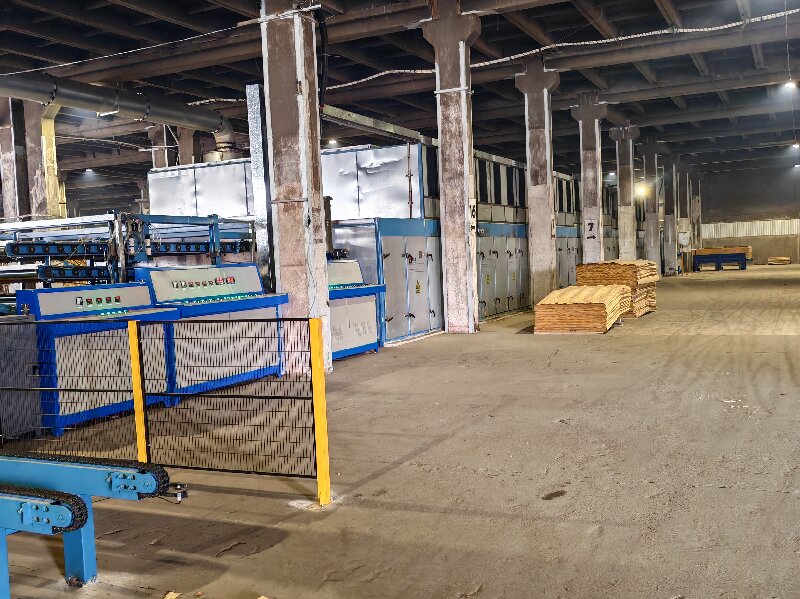

Shine Veneer Dryer Sets New Industry Standard with Customizable Working Width from 3 to 6 Meters
SHANDONG, China – In a significant advancement for the wood processing industry, Shine Machinery Co., Ltd. has announced that its renowned Shine Veneer Dryer series now offers fully customizable working width options ranging from 3 meters to 6 meters, enabling veneer manufacturers to precisely match their drying equipment to specific panel dimensions and production capacity requirements. This flexibility in working width customization represents a strategic response to the growing diversity in global veneer applications, from standard plywood core layers to extra-wide architectural face veneers.
The announcement comes as veneer producers worldwide face increasing pressure to optimize production efficiency while maintaining the highest quality standards for wood veneer drying. By offering adjustable working width configurations, Shine Machinery empowers clients to eliminate the compromises often associated with standard-width equipment, ensuring that every square meter of drying capacity delivers maximum return on investment.
The Critical Role of Working Width in Veneer Drying Efficiency
In the veneer production process, the veneer dryer stands as the most energy-intensive and quality-determining piece of equipment. The working width of a dryer—the effective horizontal space through which veneer sheets pass during drying—directly influences not only hourly throughput but also the uniformity of moisture removal across each sheet.
"Traditional dryer designs have long forced manufacturers to adapt their veneer sizes to fit the machine, rather than the other way around," explained Mr. Dennis, Chief Engineering Officer at Shine Machinery. "A producer handling primarily 4-foot-wide panels might invest in a 3-meter dryer, only to find themselves unable to efficiently process occasional 6-foot specialty orders. Alternatively, they might install an oversized unit and waste energy drying space. Our new customizable working width eliminates this dilemma".
The engineering team at Shine Machinery has developed a modular framework that allows the working width to be precisely specified during the design phase, with options available in increments that accommodate the full spectrum of global veneer dimensions. Whether a client requires 3 meters for standard plywood core production, 4.5 meters for furniture-grade panels, or the full 6 meters for architectural veneer applications, the dryer is built from the ground up to match those exact specifications.
Technical Implementation: Engineering Precision Across the Width Spectrum
Achieving uniform drying performance across a working width that can double from 3 to 6 meters requires sophisticated engineering adaptations in multiple dryer subsystems. Shine Machinery's approach to working width customization involves comprehensive recalculations of airflow dynamics, heat distribution, and mechanical drive systems to ensure that performance metrics remain consistent regardless of the selected width.
Airflow and Nozzle System Design
The most critical challenge in scaling working width lies in maintaining uniform air velocity and temperature across the entire veneer surface. Shine's engineers utilize Computational Fluid Dynamics (CFD) modeling to design custom plenum chambers and nozzle arrangements for each specified working width. For wider configurations, the system incorporates zone-segmented air control, allowing independent adjustment of airflow in different lateral sections to compensate for edge effects or variations in incoming veneer moisture content.
The nozzle geometry itself is optimized based on the working width and the typical veneer thickness range. For dryers processing delicate 0.5mm face veneers across a 6-meter width, the system employs lower-velocity, high-volume airflow to prevent sheet flutter or damage. Conversely, a 3-meter configuration focused on a thicker core veneer might utilize higher-velocity jets for rapid moisture extraction.
Conveyor and Drive Engineering
The mechanical conveyor system must maintain precise tracking and tension across the full working width to prevent wrinkling, tearing, or jamming—particularly critical when processing thin wood veneer. Shine's design team calculates roller spacing, diameter, and material specifications based on the selected working width and the anticipated veneer thickness range.
For wider configurations, the drive system incorporates multiple synchronized motors with electronic line-shafting control to eliminate torsional flex along the long rollers. This ensures that veneer sheets feed smoothly from infeed to outfeed, maintaining perfect alignment regardless of whether the dryer is operating at 3 meters or 6 meters working width.
Thermal System Scaling
The heat exchanger capacity, fan motor sizing, and ductwork dimensions are all proportionally scaled to match the working width. A 6-meter dryer requires approximately double the volumetric airflow of a 3-meter unit to maintain the same air velocity across the wider veneer path. Shine's modular heat section design allows for additional fan banks and heat exchanger surface area to be incorporated as working width increases, ensuring that thermal performance remains consistent across the entire size range.
Market-Driven Flexibility: Meeting Diverse Production Realities
The introduction of a fully customizable working width from 3 to 6 meters reflects Shine Machinery's deep understanding of the varied applications for wood veneer in today's global marketplace. Different industry segments present distinct requirements that a fixed-width dryer simply cannot optimally serve.
Plywood and Structural Panel Production
For manufacturers focused on plywood core and back veneers, the 3 to 4-meter working width range typically aligns well with standard panel dimensions. However, even within this segment, variations exist based on regional market preferences. North American plywood producers often work with 4-foot by 8-foot panel formats, while European manufacturers frequently utilize metric dimensions. Shine's customizable working width allows each producer to optimize their dryer for the exact panel sizes they manufacture, eliminating trim waste and maximizing throughput.
Furniture and Cabinet Manufacturing
The furniture industry demands wood veneer in an increasingly diverse range of widths, from narrow strips for edge-banding to wide panels for table tops and cabinet doors. A veneer dryer with adjustable working width capability enables furniture manufacturers to process this full spectrum efficiently. A producer might configure their dryer at 4.5 meters to accommodate wide furniture panels while maintaining the flexibility to run multiple narrower strips simultaneously, effectively multiplying throughput.
Architectural and Specialty Veneers
At the upper end of the working width range, 6-meter dryers serve the architectural veneer market, where panels for wall coverings, doors, and specialized millwork require extra-wide sheets. These applications often involve premium wood species where drying precision is paramount to preserve color, grain definition, and dimensional stability. Shine's engineering team works closely with architectural veneer specialists to develop drying profiles that maintain these quality attributes across the full 6-meter width.
Emerging Markets and Regional Variations
In rapidly developing veneer production regions such as Southeast Asia, South America, and Africa, manufacturers often process logs from diverse species with varying drying characteristics. The ability to specify working width based on local market requirements—whether for tropical hardwood plywood or plantation-grown eucalyptus—allows these producers to build drying capacity perfectly matched to their raw material and target markets.
Economic Impact: ROI Through Precision Sizing
The financial implications of a properly sized working width extend far beyond the initial equipment investment. Shine Machinery's customization approach delivers tangible economic benefits throughout the dryer's operational life.
Capital Efficiency
By ordering a veneer dryer built to exactly the required working width, manufacturers avoid the capital waste associated with oversizing. A producer who needs 3.5 meters of effective drying width can specify that exact dimension rather than purchasing a standard 4-meter unit and operating with 0.5 meters of unused capacity. This precision sizing reduces the initial equipment cost while ensuring that every dollar invested contributes directly to production capability.
Energy Optimization
Energy consumption in veneer drying is directly proportional to the volume of heated air circulated and the surface area through which heat is transferred. A dryer with excessive working width wastes energy heating air that never contacts the veneer. Conversely, a unit with insufficient working width may require higher operating temperatures or slower line speeds to achieve target throughput, also increasing energy intensity. Shine's width customization ensures that energy input precisely matches the veneer load, typically yielding 15-25% improvements in energy efficiency compared to adapted standard dryers.
Quality and Yield Improvement
Uniform moisture content across the veneer width is essential for downstream processes such as gluing, pressing, and finishing. When working width matches veneer dimensions, airflow patterns remain consistent across the entire sheet, eliminating the edge-drying effects common in oversized dryers. This uniformity translates directly to higher veneer grades, reduced reject rates, and improved yield from valuable wood resources. Clients report quality consistency improvements of up to 40% when switching to Shine's customized-width dryers.
Labor Productivity
Properly sized working width simplifies loading and unloading operations. Operators can feed veneer continuously without the need to adjust for variable dryer capacity or manage the complexities of running multiple narrow strips through an overly wide machine. This operational simplicity reduces labor requirements and minimizes the risk of feeding errors that can lead to jams or equipment damage.
Technical Specifications and Configuration Options
Shine Machinery offers the customizable working-width veneer dryer in multiple configurations to suit different production philosophies and factory layouts.
Roller-Type Dryer Configurations
The roller-type veneer dryer remains the most popular choice for high-volume plywood and core veneer production. In this configuration, the working width customization involves:
Roller length precisely matched to the specified width with appropriate support spacing
Drive motor sizing is calculated based on total roller mass and the anticipated veneer load
Chain or belt drive systems are engineered for the selected width to ensure synchronization
Side plate and frame construction are reinforced proportionally to the width for rigidity
Standard roller-type models accommodate veneer thickness from 0.5mm to 5mm, with heating section lengths customizable from 16 meters to 40 meters or more based on throughput requirements.
Mesh Belt and Combination Systems
For thinner face veneers and delicate specialty products, Shine offers mesh belt dryers with a customizable working width. These systems provide gentler handling and are particularly suited to working width configurations at the upper end of the range, where thin veneer might sag between rollers. Combination systems incorporating both rollers and mesh belts are also available, with working width customization applied consistently across both conveyance methods.
Multi-Deck Configurations
To maximize production within a given factory footprint, Shine offers multi-deck dryers where multiple layers of veneer dry simultaneously. The working width customization applies equally to each deck, and the vertical spacing between decks is engineered based on typical veneer thickness. This configuration is particularly valuable for manufacturers with space constraints who require high throughput from a compact installation.
Heat Source Flexibility
Regardless of working width, Shine dryers can be engineered for various heat sources, including:
Biomass combustion systems utilizing waste wood, bark, and veneer trim
Steam heating for facilities with existing boiler infrastructure
Thermal oil systems provide precise temperature control
Direct-fired gas for applications requiring rapid heat-up and response
The heat exchanger configuration and capacity are scaled proportionally to the working width to maintain consistent drying temperatures across the entire veneer path.
The Customization Process: From Consultation to Commissioning
Shine Machinery's approach to working width customization follows a structured engineering process designed to capture all relevant operational parameters before a single component is fabricated.
Phase 1: Production Analysis
The engineering team conducts a comprehensive review of the client's current and planned production, analyzing:
Veneer species, thickness ranges, and target moisture contents
Typical sheet dimensions and dimensional variability
Current and projected hourly or annual throughput requirements
Factory space constraints, ceiling height, and utility availability
Integration requirements with upstream peeling/slicing and downstream processing
This analysis establishes the optimal working width that balances immediate needs with future flexibility.
Phase 2: Engineering Design and Simulation
Using advanced CAD and CFD software, Shine engineers develop a complete dryer design with the specified working width. The virtual model simulates airflow patterns, temperature distribution, and veneer tracking across the full width, allowing optimization before manufacturing begins. Clients receive detailed 3D renderings showing how the dryer will fit within their facility and interface with existing equipment.
Phase 3: Component Fabrication and Assembly
With the design finalized, fabrication begins using Shine's precision manufacturing capabilities. Critical components such as rollers, frames, and ductwork are produced to exacting tolerances that ensure the specified working width performs identically to narrower or wider configurations. Quality control inspections verify dimensional accuracy at each manufacturing stage.
Phase 4: Testing and Validation
Before shipment, completed dryers undergo comprehensive testing to validate performance across the full working width. Instrumentation measures air velocity profiles, temperature uniformity, and conveyor tracking to confirm that the finished machine meets all design specifications.
Phase 5: Installation and Commissioning
Shine's field service team oversees installation and commissioning, ensuring that the dryer integrates seamlessly with the client's production line. Operators receive training specific to their dryer's working width configuration, including procedures for width-appropriate loading patterns and maintenance routines.
